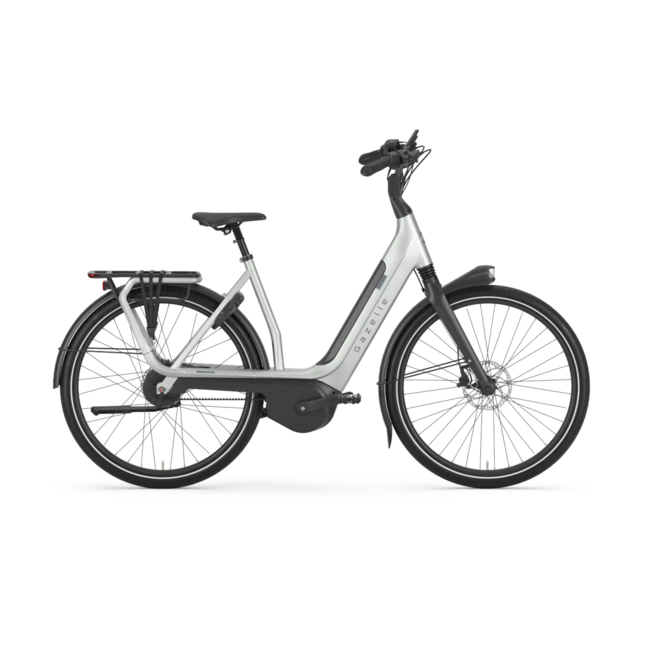

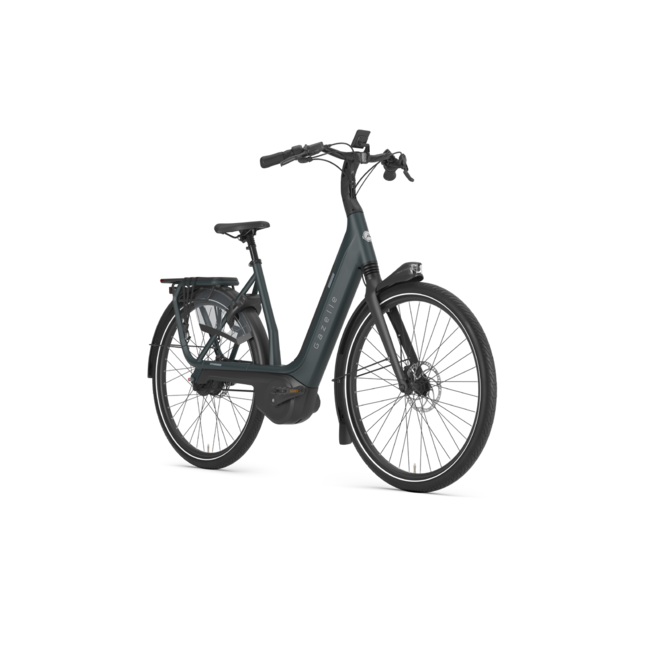

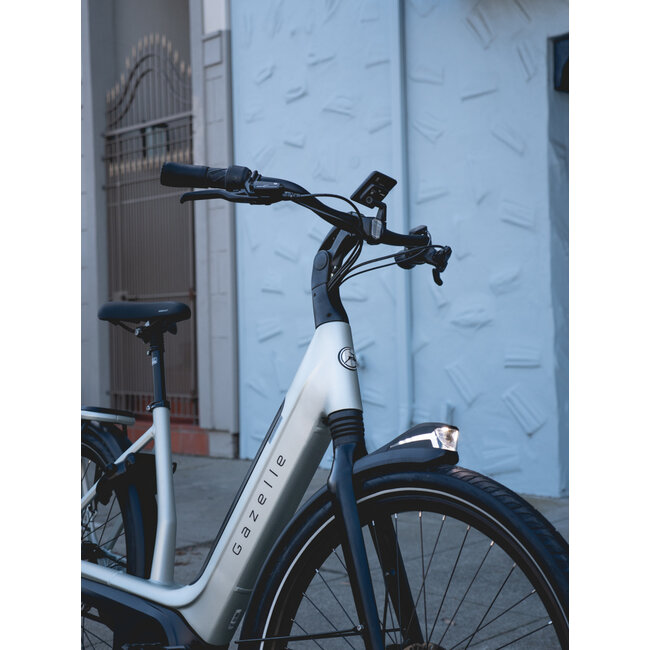

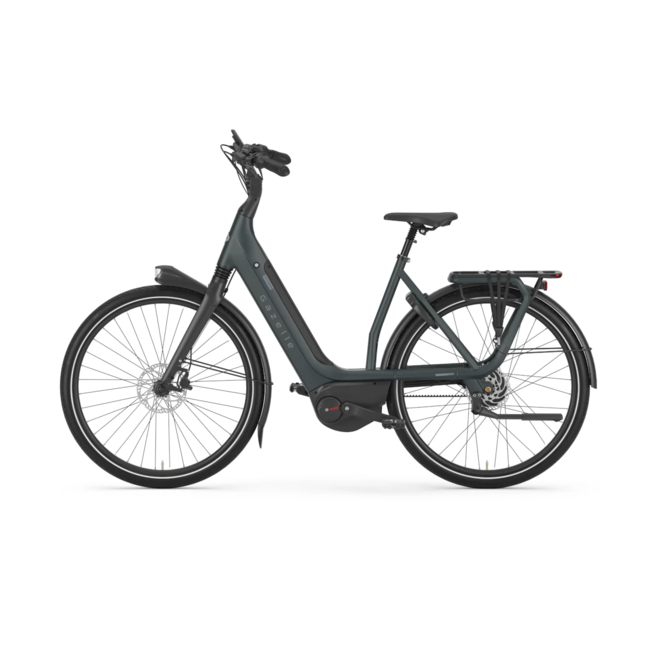

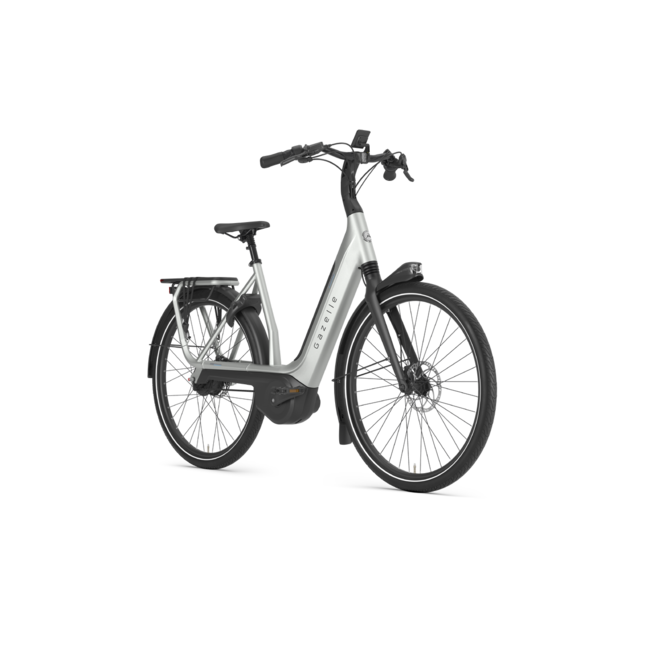

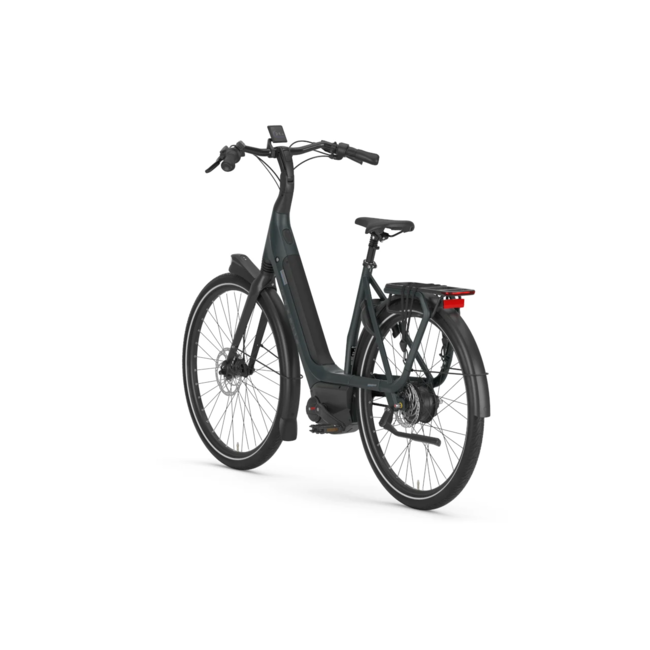

Echo Sports presents the new Gazelle Avignon C380 HMB winner of the iF Design Award 2022

Want to use your bike even more often? With the Avignon C380 HMB you choose the ultimate in comfort; it's without doubt Gazelle's most comfortable electric bike. And this comfort is reflected in every aspect of the bike. It's found, for example, in the upright seating position, for a relaxed ride, in the suspension, and in the extra-wide tires. But also in the low, wide straddle, intuitive display and low-maintenance belt drive. Powerful daytime running lights and a 625 Wh battery complete the picture.



Always the right speed

The Enviolo progressive gear hub lets you shift smoothly, even when stationary. The drive system uses a Gates CDX belt. It does its job quietly and requires little maintenance, for your utmost comfort!

Contrôle optimal

The Avignon C380 HMB features extra-wide tires for excellent handling and comfort. Magura disc brakes guarantee excellent stopping power, easy to proportion in all conditions with the large brake levers. So you're always in control.

SPECS

SYSTEM
• Ebike system: Bosch smart system
• Display: Bosch Intuvia LCD center
• Display detachable: Yes
• Controlled on handle: Yes
• Sensors: rotation sensor; speed sensor; pedal force sensor
• Engine: Bosch Performance Line (75Nm), 36V
• Battery: Low-step: Integrated into frame
• Charger: 4 Ah
• Battery capacity: 625 Wh

TRANSMISSION/BRAKE
• Gear system: Enviolo 380 Trekking Manual stepless gear system
• Brake system back: Disc brake with hydraulic control; Magura CT4, 2 piston 160 mm
• Brake system front: disc brake; Magura CT4, 2 piston 180 mm
• Shifter: Enviolo Twist Pure
• Front chainwheel: 46
• Rear chainwheel: 22
• Drivetrain: Belt
• Chain: Gates CDX belt drive, with Centertrack

FRAME/FRONT FORK
• Frame: Stable aluminum frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh)
• Sitting position: Upright
• Integrated cables: Yes
• Fork: Aluminum, springing in headset, lightweight
• Travel fork: 40 mm
• Chain guard: 100% recycled plastic, with automatic chain tensioner
• Rear carrier: Aluminum MIK HD system carrier

WHEELS/TIRES
• Tires: Scalato Mondano, 55-622
• Tires puncture resistant: Yes
• Rims: Ryde Zac 25, Double-walled aluminum for extra strong and ecient cycling performance
• Front hub: Shimano
• Rear hub: Enviolo 380 Trekking Manual continuously variable gears, freewheel
• Spokes: Stainless steel, extra strong
• Fender: Aluminum

STEERING
• Handlebar: Aluminum, comfort curved model
• Stem: Steplessly adjustable
• Steer grip: Luxury leather handlebar grips for a sophisticated feel and extra comfort
• Grip type: Gazelle Aero leather
• Brake lever: Magura CT4
• Bell: Gazelle rotary bell

SADDLE
• Seatpost: Sprung
• Saddle: Selle Royal Essenza Plus gel

LIGHTING
• Lights front: Gazelle Fendervision, LED headlight with daytime running lights, always on
• Front light lux: 70
• Front light powersource: Battery
• Light back: Spanninga Commuter Glow, LED, battery supply, always on
• Rear light powersource: Battery

OTHER
• Lock type: Abus 4750L, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
• Lock safety level: ART ** certified
