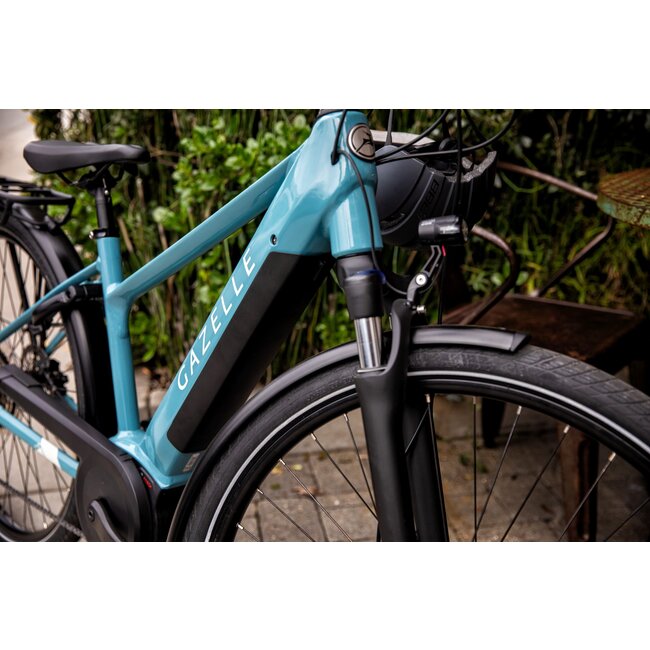

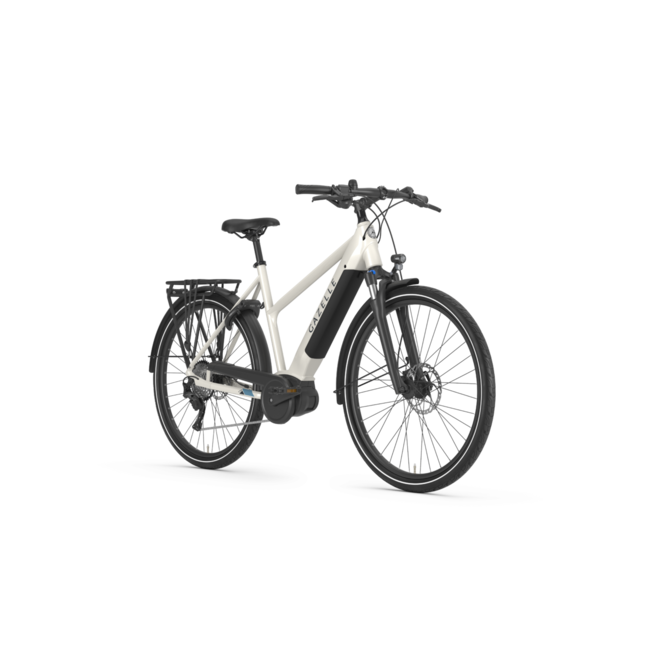

Gazelle Medeo T10 HMB E-bike

Information

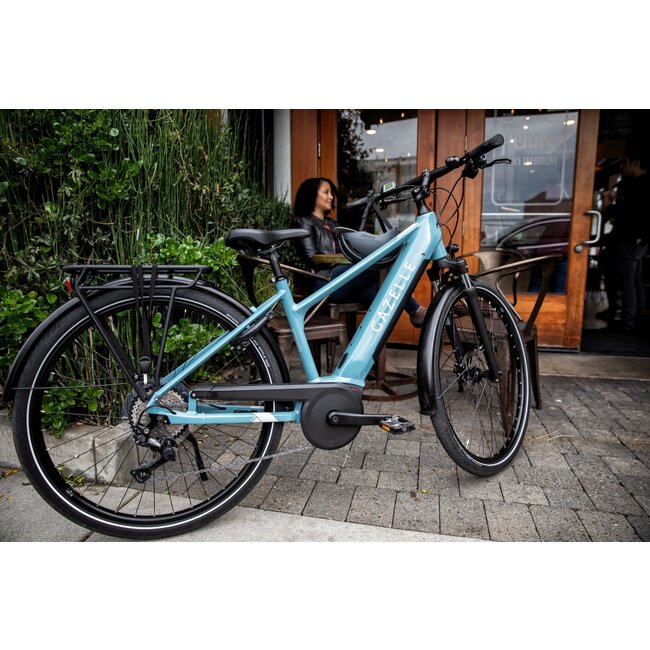

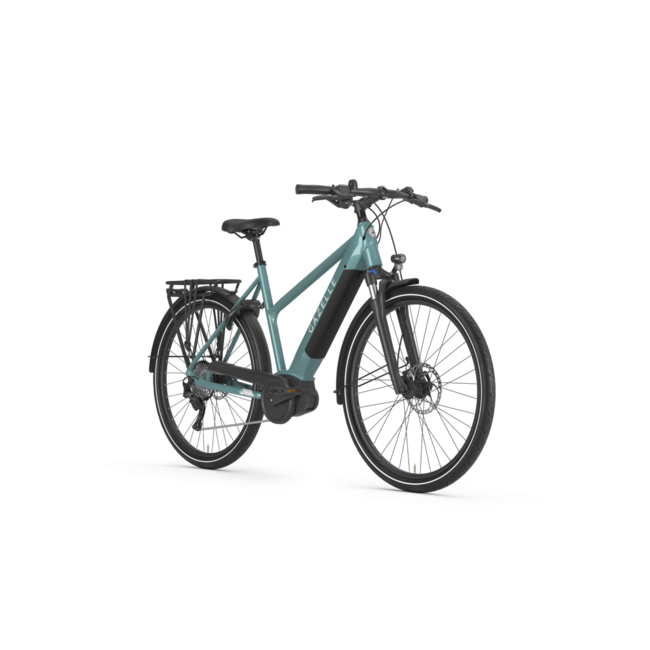

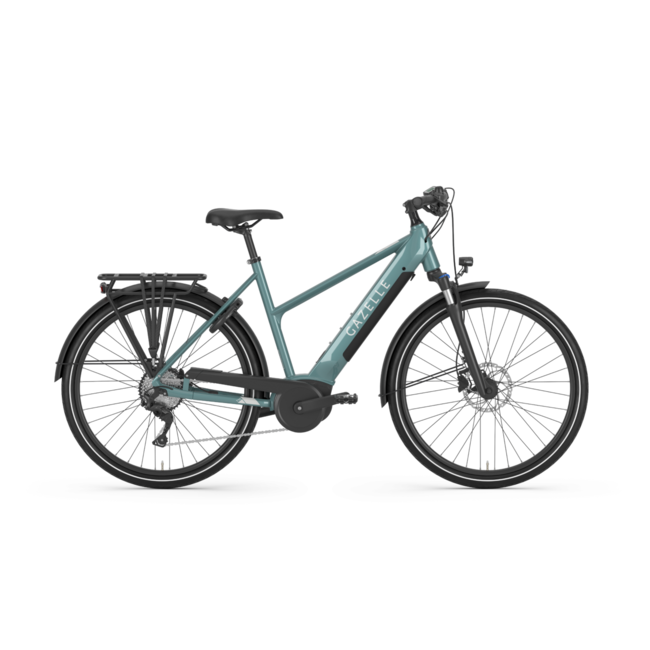

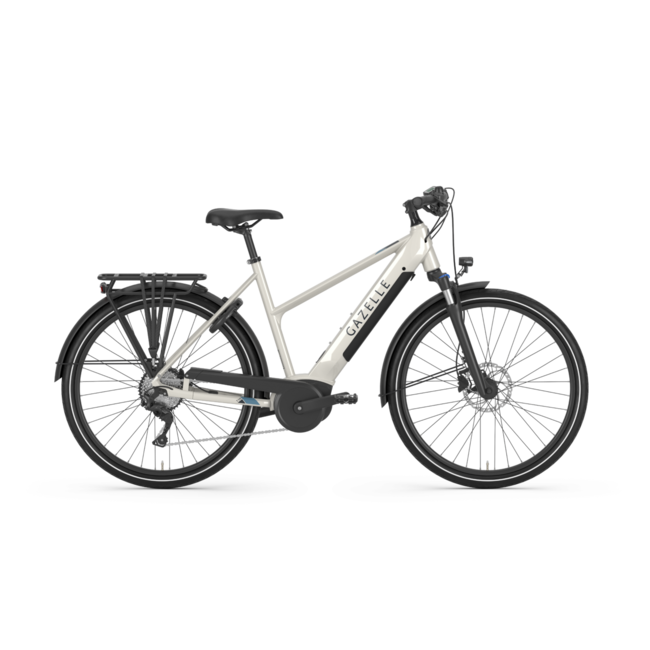

DISCOVER GAZELLE MEDEO T10 HMB ELECTRIC BIKE

The Medeo T10 HMB is the highly versatile and functional electric bike to tackle everything from the rat race to the farmer’s market and everything in between. The artfully designed sloping frame boasts a stylish down tube that integrates with the head tube to create a striking silhouette that will leave your friends envious. With trusted frame geometry and stable handling, combined with wide tires, a suspension front fork and ergonomic handlebar grips, the Medeo T10 HMB is the electric bike to complement your cosmopolitan life.

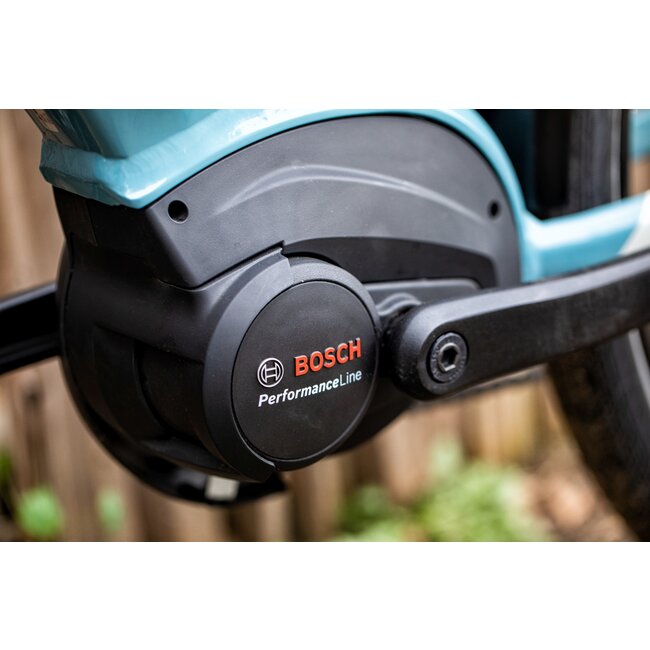

BOSCH MID-DRIVE MOTOR

Enjoy effortless cycling with the powerful and robust Bosch mid-motor. Due to the low placement of the mid-motor, each Gazelle Hybrid with a Bosch mid-motor has excellent maneuverability and handling. The powerfully robust Bosch middle motor is ideal for both short trips and long-distance adventures. Gazelle electric bikes with Bosch eBike Systems motors are capable and dependable.

RANGE:

Maximum range	70 Mi
Watt-hours	500 Wh
Capacity	13,4 Ah
Eco range	70 Mi
Tour range	40 Mi
Sport range	30 Mi
Turbo range	25 Mi



OVERVIEW

• Size45, 50, 55
• Engine modelBosch Performance Line 3.0 (65 Nm)
• Brake system short descriptionhydraulic brakes, 2 piston
• Gears10
• Fork suspension typetelescopic



FULL SPECS:

Weight in Lb. : 49.6 lbs

FRAME
Size : 45, 50, 55
Frame description:
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material : Aluminium

FORK
Fork material: Aluminium
Fork suspension type: telescopic
Travel of suspension fork: 50 mm
Front fork suspension lock-out

WHEELS
Wheelsize : 28"
Rims: Mach1 ER-10, Double-walled aluminium for extra strong and efficient cycling performance
Spoke description: Stainless steel, extra strong

TIRES
Tires: Schwalbe Energizer Plus
Tire color: black
Tires puncture resistant

TRANSMISSION
Gear system: 10-speed Shimano Deore
Gear type: derailleur
Rear derailleur: Shimano Deore
Front chainwheel: 38
Rear chainwheel: 11-42

DRIVETRAIN
Drivetrain: Chain

BRAKES
Brake Front: Disc brake with hydraulic control
Brake Rear: Disc brake with hydraulic control
Disc brake rotor size front: 180 mm
Disc brake rotor size rear: 160 mm
Brake system description front: Shimano BR-MT200, 2 piston
Brake system description rear: Shimano BR-MT200, 2 piston

HANDLEBAR
Handlebar description: Aluminium, slightly curved model
Adjustable stem
Grip type: Herrmans DD36
Grips: Plastic wear-resistant handlebar grips for a firm grasp

SADDLE
Saddle: DDK, sportive
Seatpost description: Fixed

FRONT LIGHT
Light front description: LED headlamp, on/off switching via display
Front light powersource: Battery
Front light lux: 35
Front light type: Axa Compactline 35
Rear light powersource: Battery

ENGINE
Ebike system: Bosch Performance Line (65 Nm)
Engine location: mid-drive motor
Torque: 65nm
Ebike sensors: pedal force sensor, rotation sensor, speed sensor

BATTERY
Battery type: Li-ion - Bosch powertube 500Wh
Battery position
Integrated into frame
E-bike charger: 4 Ah

DISPLAY
4 support levels

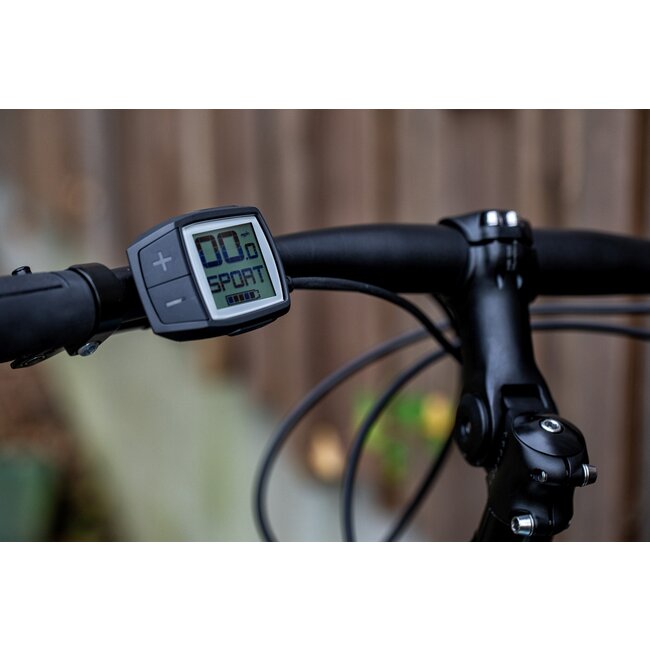

Display control unit: Bosch Purion LCD
Walk assist

WARRANTY
Warranty frame: 10 years’ warranty
Warranty fork: 5 years’ warranty
Warranty paint: 5 years’ warranty
Warranty other parts: 2 years’ warranty
Warranty battery: 2 years’ warranty
Warranty motor: 2 years’ warranty
Warranty diplay: 2 years’ warranty

Other

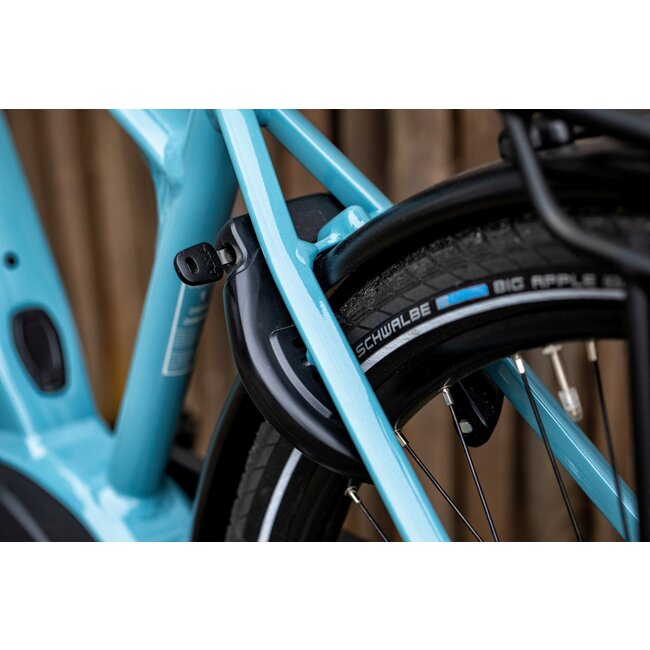

Lock description: Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
Lock safety level: ART ** certified
Lock Type: Axa Block XXL
Chain guard: Plastic
Kickstand: Ursus Mooi drop-down rear stand
Rear carrier: Aluminum MIK system carrier
