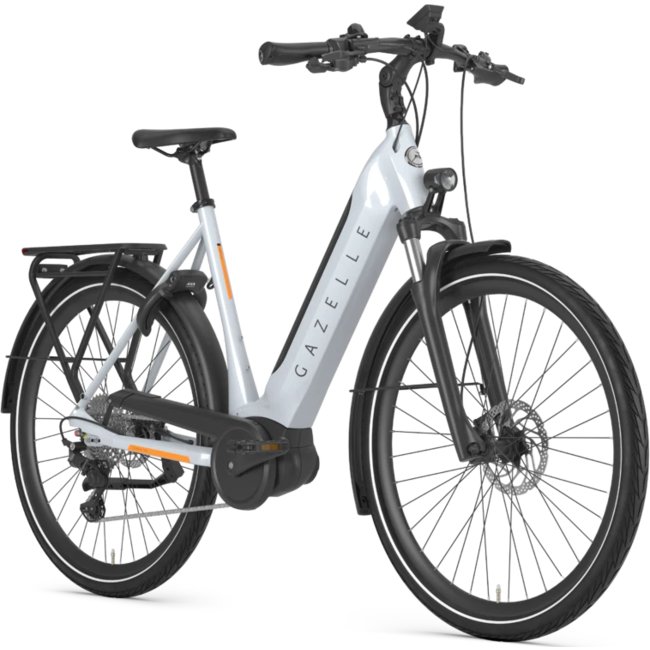

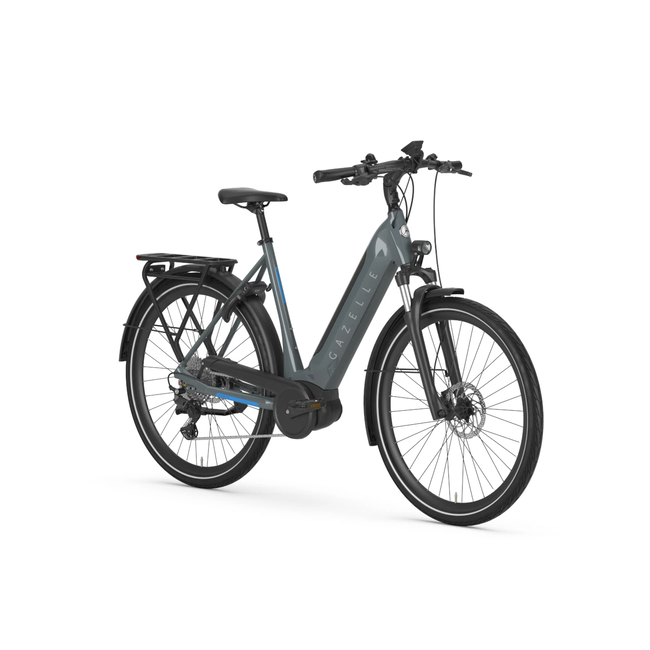

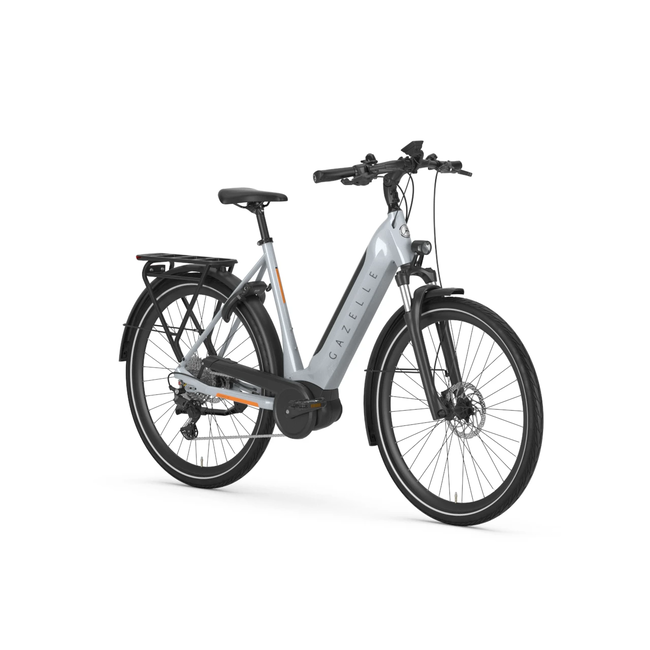

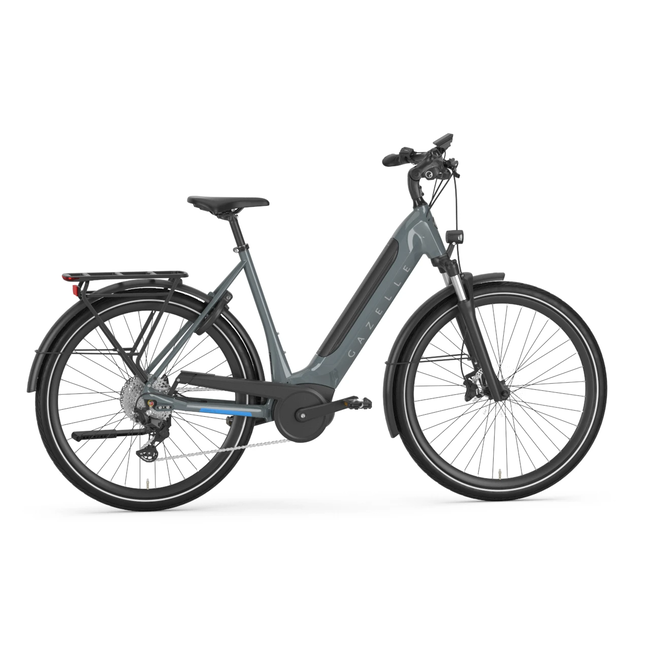

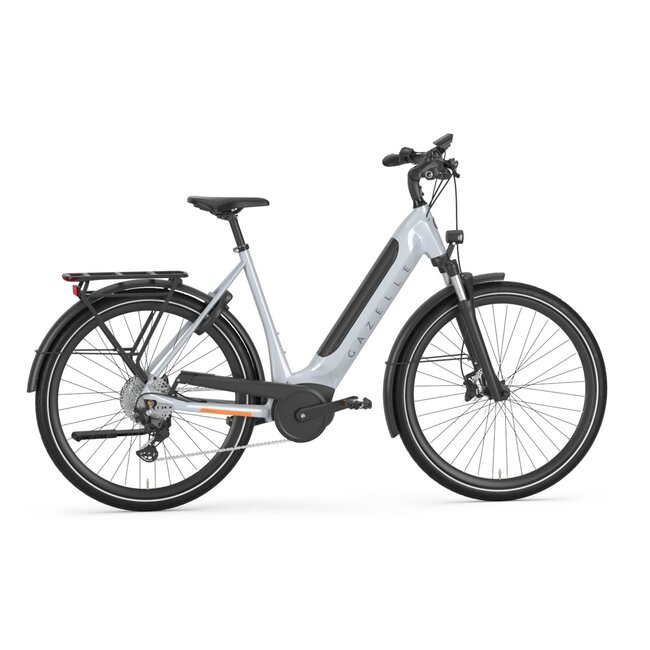

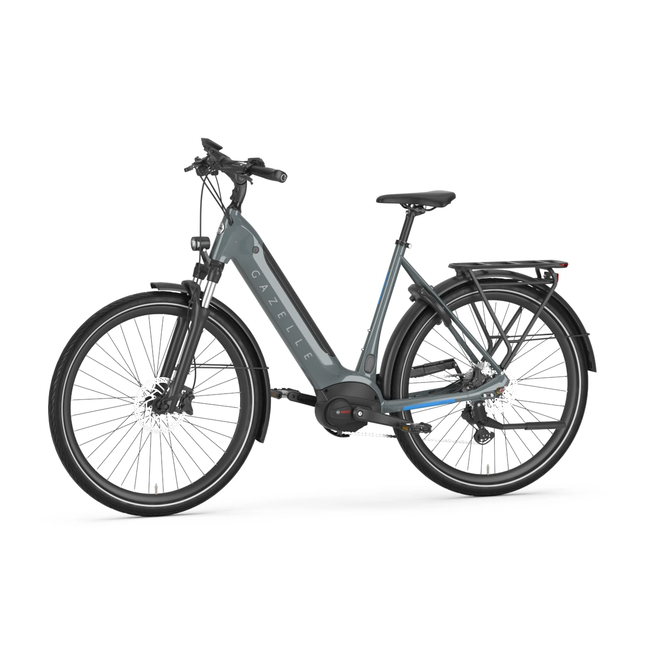

Gazelle Ultimate T10 HMB Bosch Smart System low-step E-bike 23

Information

The Gazelle Ultimate T10 HMB is perfect E-bike for getting out in the great outdoors. Enjoy hills or flat terrain for as long as you want. This sporty bike has an award-winning frame and high-quality finish.

With the Bosch Performance Line mid-drive motor and derailleur gears, you can tackle any hill with ease. The integrated battery and motor deliver excellent stability.

Bosch smart system
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 65 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.`

Powerful support
The Ultimate T10 HMB takes on steep hills rides and extended touring trips with ease. Equipped with Bosch's powerful next gen Performance Line mid-drive motor, you'll enjoy smooth support with up to 75 Nm of torque. With a high-capacity down tube 625 Wh battery plus the possibility to add a Bosch Powerpack 500 Wh battery, no ride is too far.

More comfort with front-fork suspension
The Ultimate T10 HMB is made for long, active trips, which is clear from the telescopic fork. It offers 75 mm of travel to ensure a more comfortable ride over rough roads and unexpected obstacles. The high-quality fork neutralizes the vibrations of uneven surfaces as much as possible, reducing fatigue and stress for the rider, even on extra long rides.



Specifications
SYSTEM
• Ebike system: Bosch smart system
• Display: Bosch Kiox 300
• Display detachable: Yes
• Controlled on handle: Yes
• Sensors: rotation sensor; speed sensor; pedal force sensor
• Engine: Bosch Performance Line (75Nm), 36V
• Battery: Low-step: Integrated into frame, High-step: Integrated
into frame
• Charger: 4 Ah
• Battery capacity: 625Wh
TRANSMISSION/BRAKE
• Gear system: 10-speed Shimano Deore
• Brake system back: Disc brake with hydraulic control; Shimano
BR-MT410, 2 piston 160 mm
• Brake system front: disc brake with hydraulic control; Shimano
BR-MT420, 4 piston 180 mm
• Derailleur rear: Shimano Deore
• Shifter: Shimano Deore
• Crank: Miranda Delta
• Front chainwheel: 38
• Rear chainwheel: 11-42
• Drivetrain: Chain
• Chain: KMC E10
FRAME/FRONT FORK
• Frame: Stable aluminum frame with 70,5° headset angle and
71,5° saddle tube angle for sporty cycling characteristics.
Battery, motor and cables harmoniously integrated into the
frame. High-quality finish with attention to detail.
• Sitting position: Active
• Integrated cables: Yes
• Fork: Suntour NVX30
• Fork suspension lockout: Yes
• Travel fork: 75 mm
• Chain guard: Plastic
• Rear carrier: Aluminum MIK HD system carrier
WHEELS/TIRES
• Tires: Schwalbe Energizer Plus, 50-622
• Tires puncture resistant: Yes
• Rims: Dutch 19, Double-walled aluminum for extra strong and
ecient cycling performance
• Front hub: Shimano
• Rear hub: Shimano Deore
• Spokes: Stainless steel, extra strong
• Fender: Aluminum
STEERING
• Handlebar: Aluminum, slightly curved model
• Stem: With toolbox, steplessly adjustable
• Steer grip: Plastic handlebar grips with ergonomic form for a
better distribution of pressure on the hands
• Grip type: Ergon GP1-L, ergonomic
• Brake lever: Shimano BL-MT420
• Bell: handlebar bell Decibel XXL
SADDLE
• Seatpost: Fixed
• Saddle: Selle Royal Essenza Plus
LIGHTING
• Lights front: Herrmans MR8, LED headlamp, on/o switching via
display
• Front light lux: 60
• Front light powersource: Battery
• Light back: Spanninga Commuter Glow, LED battery supply, on/
off switching via display
• Rear light powersource: Battery

OTHER
• Lock type: Axa Imenso, Ring lock with an option for a plug-in
cable to attach your bike to a fixed object for extra protection
against theft
• Lock safety level: ART ** certified
• Kickstand: drop-down rear stand, Ursus Mooi
