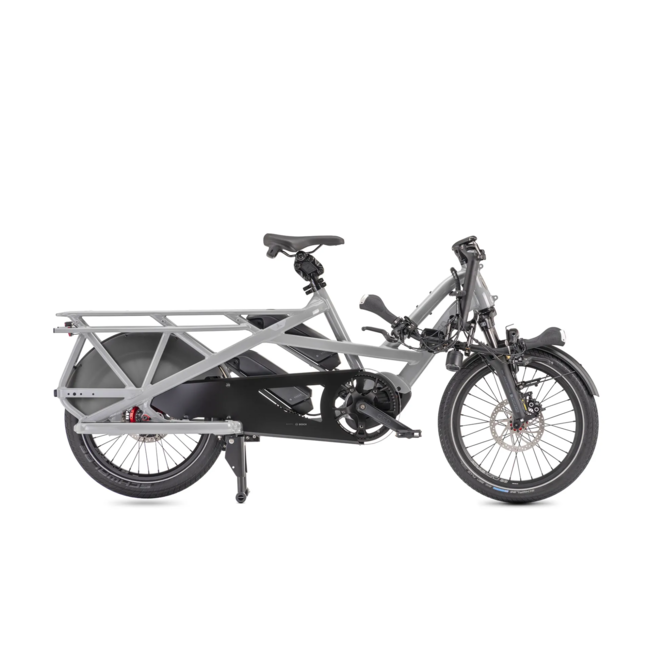

Tern GSD R14 folding cargo E-bike forge grey

Information

SPECIAL ORDER ONLY, CONTACT US TO ORDER THIS BIKE

Still Small. Even More Useful.
With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the folding cargo E-bike TERN GSD R14 is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

QUICK VIEW

• 200 kg (440 lb) Maximum Gross Vehicle Weight
• Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
• Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
• Rohloff® Speedhub features a 526% gear range, electronic shifting, and automatic downshifting
• Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free
• Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
• Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
• Heavy-duty frame-integrated rear rack and integrated lower decks
• Cane Creek® Thudbuster ST Suspension Seatpost for an extra-cushy ride
• Always-on RearStop™ Brake Light helps you safely signal stops
• Ultra-bright Ignis™ Headlight ensures 24/7 visibility, no matter the weather
• Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
• Integrated Abus® Wheel Lock, keyed-alike with the battery
• Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
• Wide range of cargo- and passenger-carrying accessories, Fits two Thule® Yepp Maxi seats, no adapters needed

GENERAL INFO
SPEEDS: 1 x 14
WEIGHT: 37.26 kg (82.1 lb)
GEAR INCHES: 19" - 102" (1.54 - 8.10 m)
FOLDING SIZE: 176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
FOLDING TIME: 5 sec
FRAME SIZES: One size

DISTANCES
SEATPOST TO HANDLEBAR: 49 - 59 cm (19.3 - 23.2 in)
SADDLE TO PEDAL: 69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 200 kg (440.9 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME
FRAME: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR: Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Ergon
SADDLE: Tern GSD by Velo, with rear handle
SEATPOST: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc

BRAKES
FRONT BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS: Magura MT5 e-stop, hydraulic, with brake sensor

WHEELS

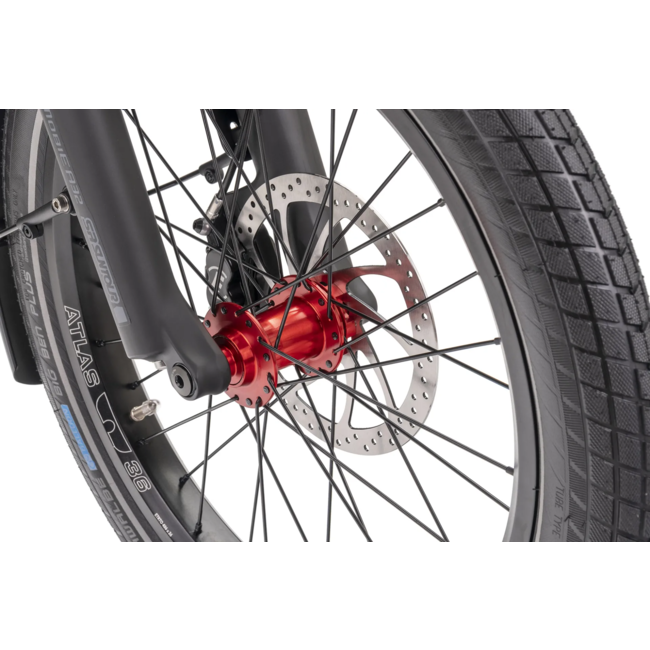

FRONT HUB: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing

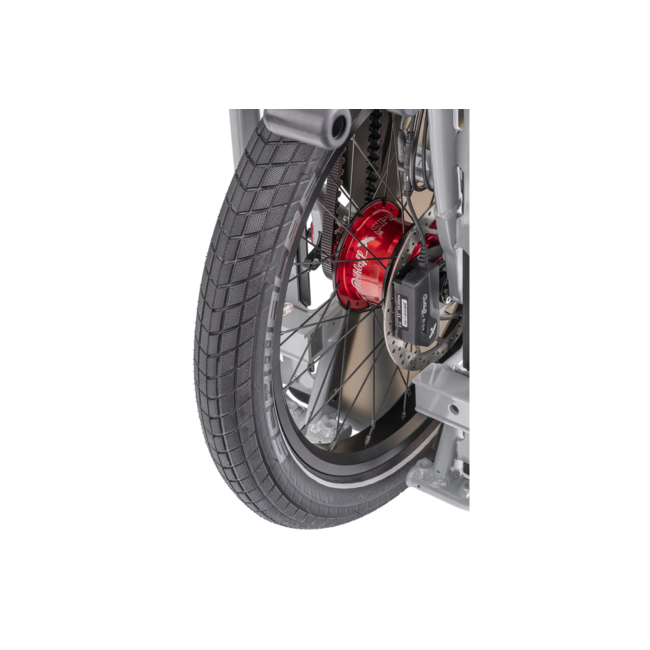

REAR HUB: Rohloff E14, 526% range, Boost
SPOKES AND NIPPLES:
Stainless steel, 13G
RIMS: Tern Atlas, ultra wide 36 mm, dual reinforced joint

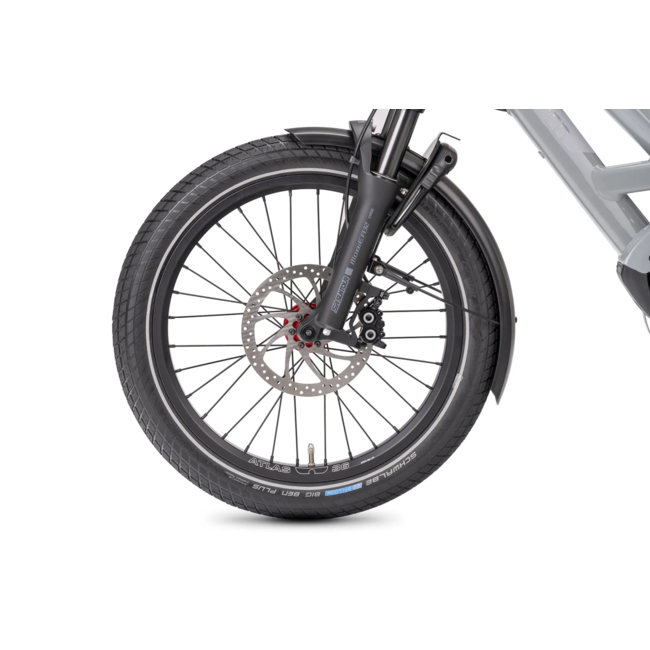

TIRES: F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Rohloff E14, e-shift 14 spd
CRANKSET: Tern GSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL: Gates CDX, precision CNC machined cog
BOTTOM BRACKET: Motor integrated
CHAIN: Gates Carbon Drive CDX belt
PEDALS: Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING: Rohloff E14, e-shift

E-SYSTEM

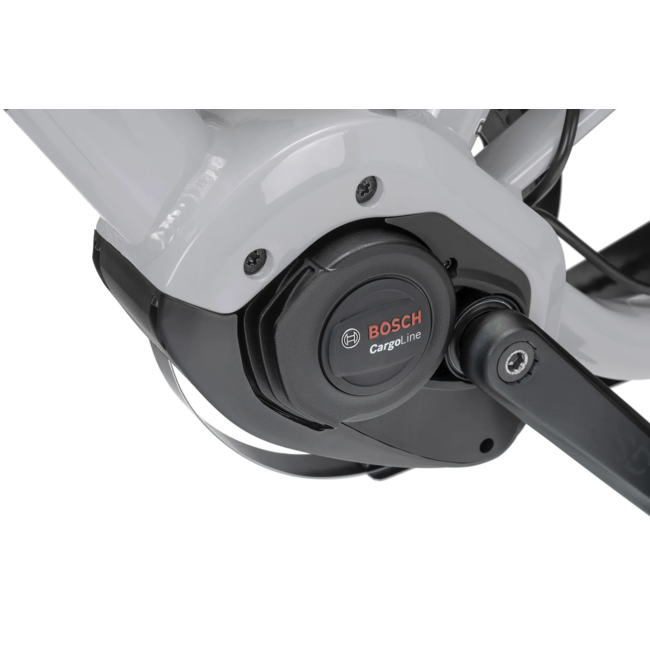

MOTOR: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY: Bosch dual-battery system (500/1000 Wh) for a range of up to 206 km (128 mi)
DISPLAY: Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
RANGE: 500 Wh/1000 Wh: 102-206 km (63-128 mi)
CHARGER: 220V, 4A (EU); 100-240V, 4A (US)

EXTRAS
BELL: Pitch Plus, brass
CHAINGUARD: Tern Custom, full chain cover

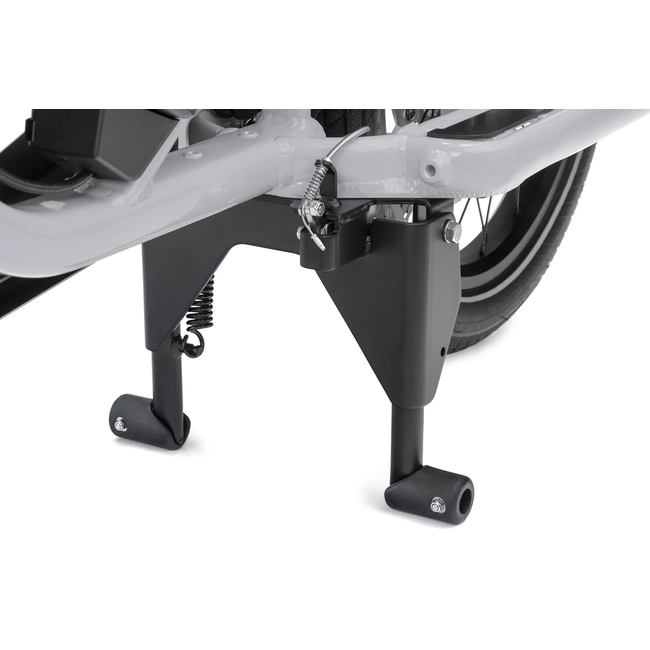

KICKSTAND: Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET: Combo Mount

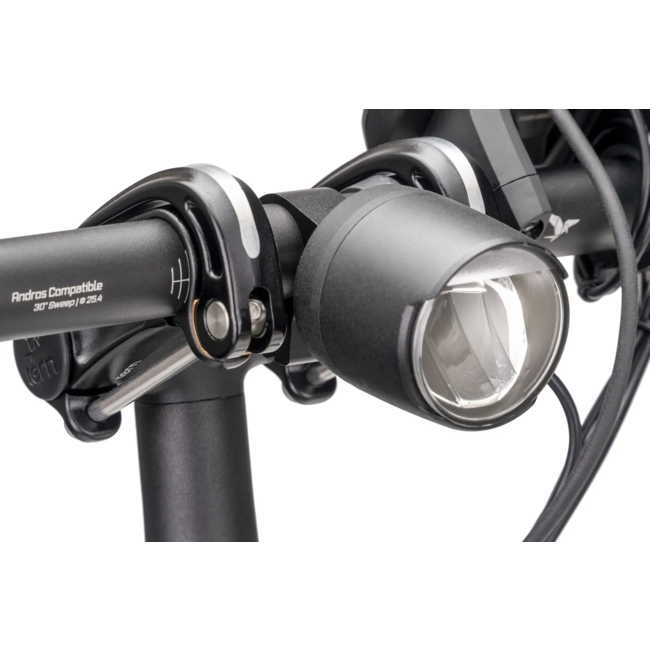

FRONT LIGHT: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT: RearStop Brake Light, Always on brake light
FENDERS: Integrated Wheel Guard, AL6061, w/ Side Skirt

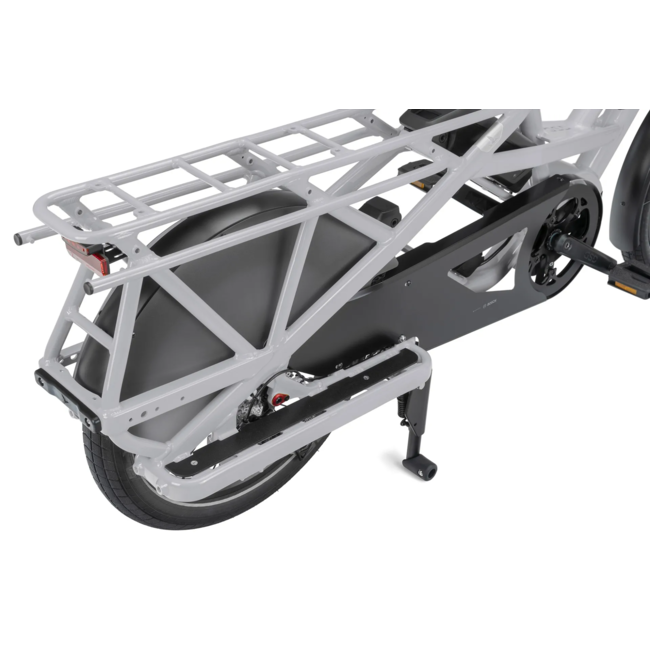

RACK(S): Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
ACCESSORY: ABUS, keyed-alike with Bosch battery
