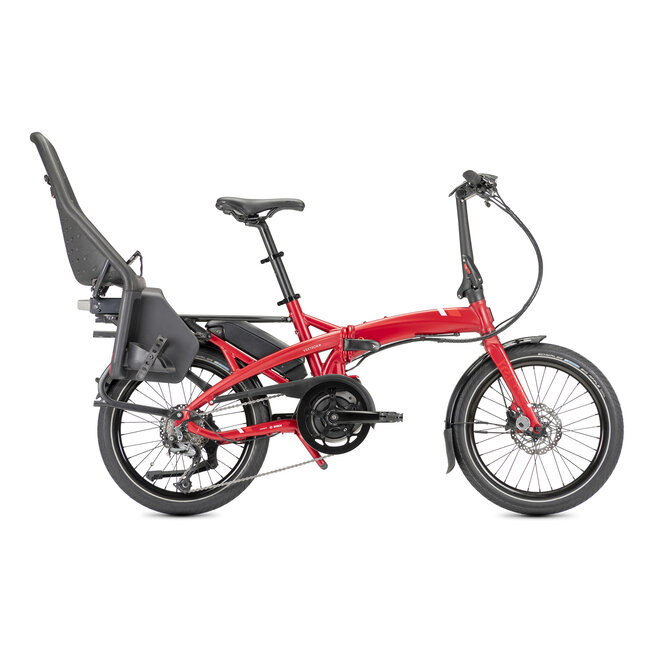

TERN VEKTRON Q9 RED FOLDABLE ELECTRIC BIKE
C$5,599.99
C$4,479.99
Excl.tax
On special order only
- Article number:
- 12-9-12
- EAN Code:
- 812741026108
- SKU:
- 12-9-12
- Delivery time:
- On special order, 7 to 10 work days. Add to cart or contact us to order this product: 418-683-3338
-
Secure payment
Lightspeed secure -
Financing available
Fairstone -
FREE SHIPPING except oversized parcels
See Shipping & Returns page for minimum purchase and oversized parcel fees -
Fast shipping
Orders processed within 48 hours
Information
Available on special order, 2-3 weeks: 1-877-683-3338
Ride it, Fold it, Go Further
The folding electric bike TERN Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.
- New colors and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for 270% more assistance and 50 Nm of torque
- Hydraulic disc brakes for all-weather stopping power
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
GENERAL INFO
SPEEDS:
1 x 9
WEIGHT:
21.9 kg (48.3 lb)
GEAR INCHES:
33" - 97" (2.65 - 7.72 m)

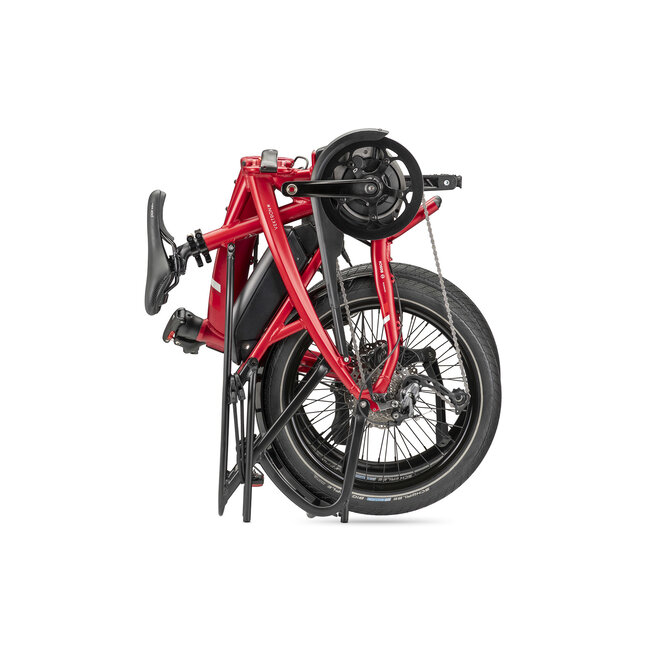

FOLDING SIZE:
41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL:
67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
125 kg (275.6 lb)
MAX LOAD WEIGHT:
105 kg (231.5 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)
FRAME
FRAME:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK:
Tern Tarsus, 6061-Al, hydroformed
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Velo ergonomic, lock-on

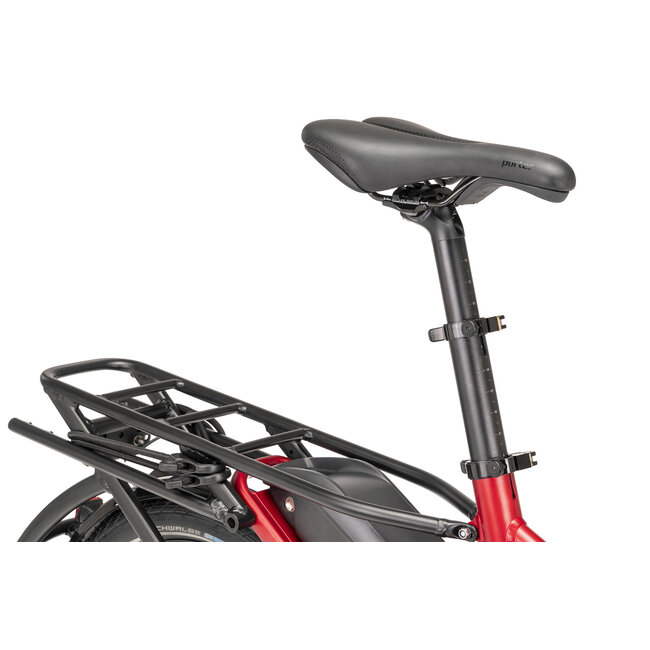

SADDLE:
Tern Porter, patented GripPad design
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar, 6061-AL, 2pc
BRAKES

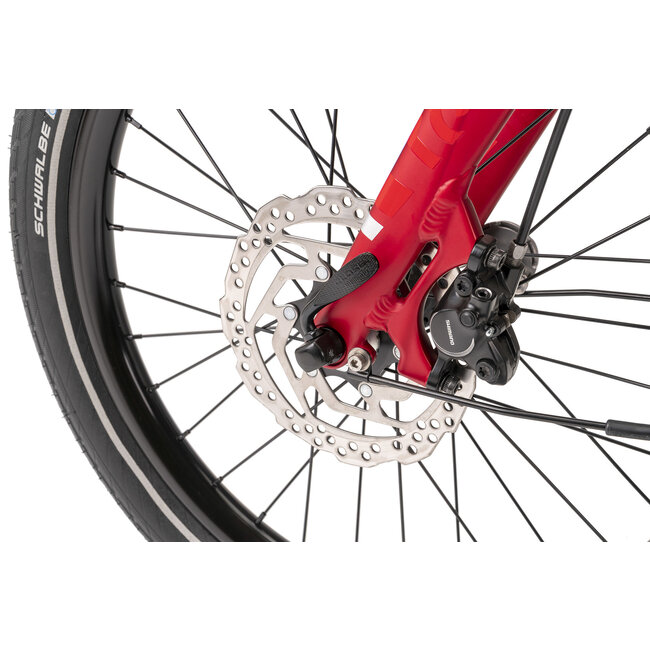

FRONT BRAKE:
Shimano, hydraulic disc
REAR BRAKE:
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc
WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano disc
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
SHIFTER(S):
Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR:
Shimano Alivio Shadow
CRANKSET:
Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-32T, 9 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
9 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
MKS EZY
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM

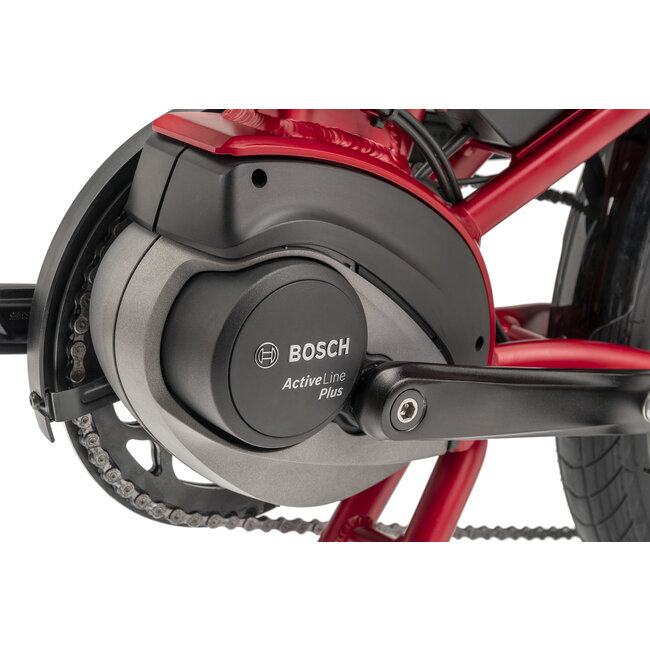

MOTOR:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400 Wh

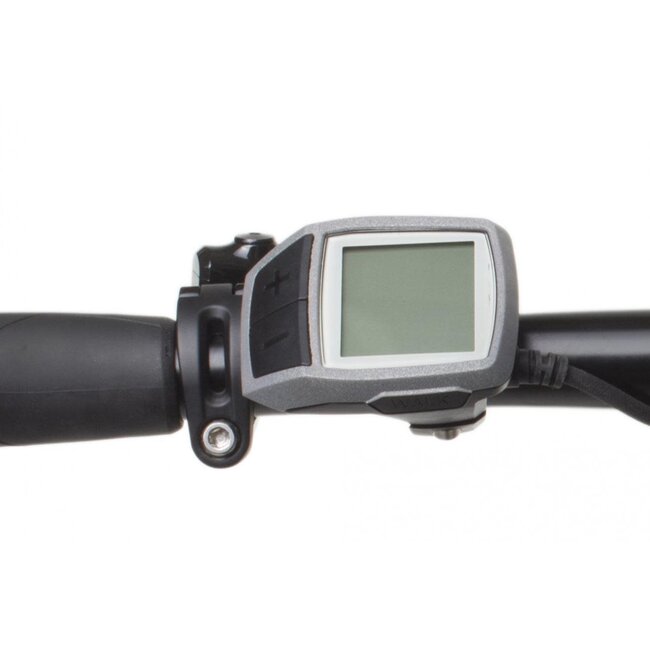

DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 55 -110 km (35-70 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade

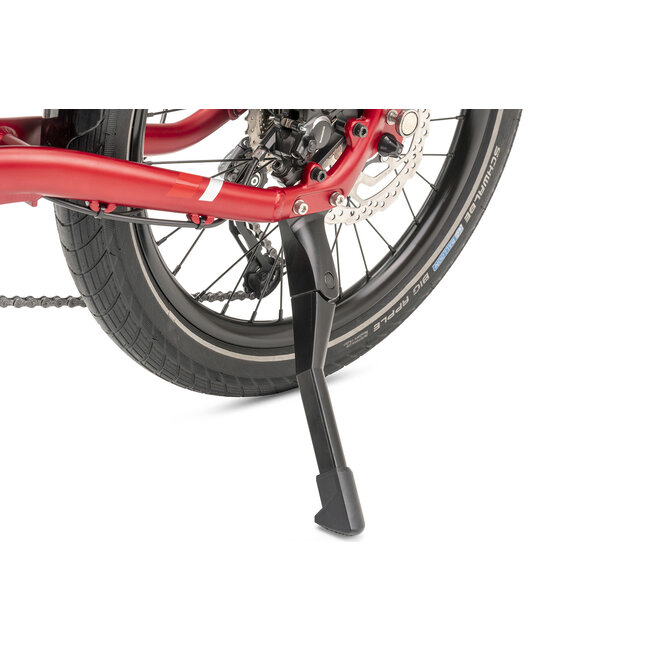

KICKSTAND:
URSUS, rear mount
CLIP SYSTEM:
Magnetix 3.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FENDERS:
SplashGuard, stainless hardware
RACK(S):

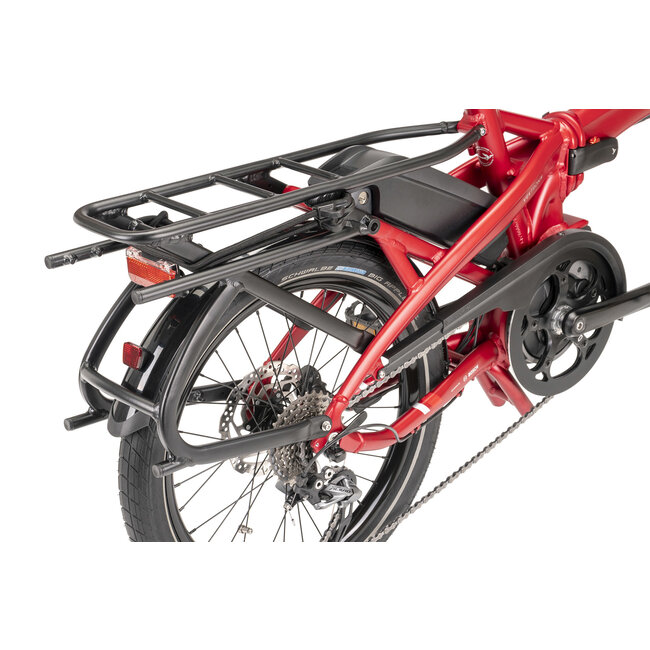

Atlas Rack, integrated 8 point mounting, max load capacity 27 kg (59 lb)
Specifications
Bike weight
21.9kg
Frame material
Tern Vektron, hydroformed 7005-AL, OCL+ joint
Maximum range
110 km
Motor
mid-drive BOSCH ACTIVE LINE PLUS
Drivetrain
Chain
Torque
50Nm
Sensors
Speed, pedal force, rotation
Asisst levels
5
Walk assist
No
Gears
9 speed Shimano Alivio
Battery
Bosch PowerPack 400 Wh
Capacity
11 Ah
Second battery
Not available
Brakes
Hydraulic disc Shimano
Suspensions
No
Front light
included, powered by battery
rear light
included, powered by battery
Front mudgard
Included
Rear mudgard
Included
Front rack
Not included
Rear rack
Included, Atlas 60lbs capacity
Max load (rider + cargo)
275lbs
Bike bell
included
Anti theft
No
