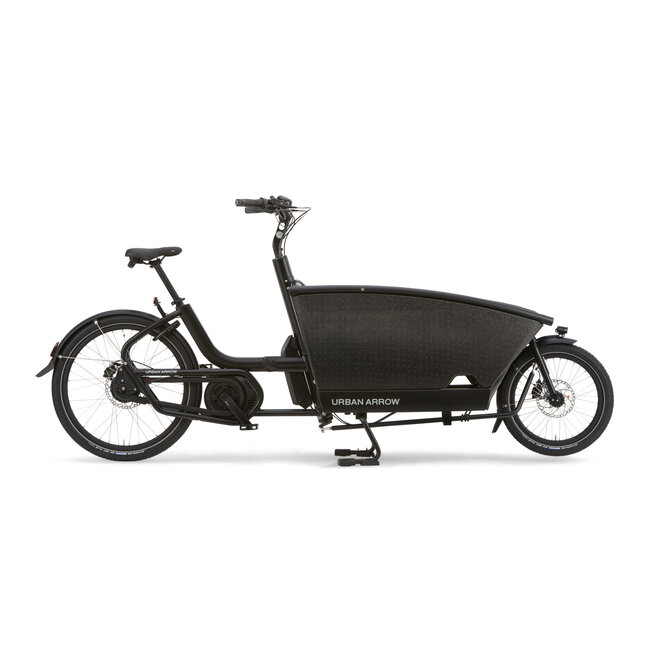

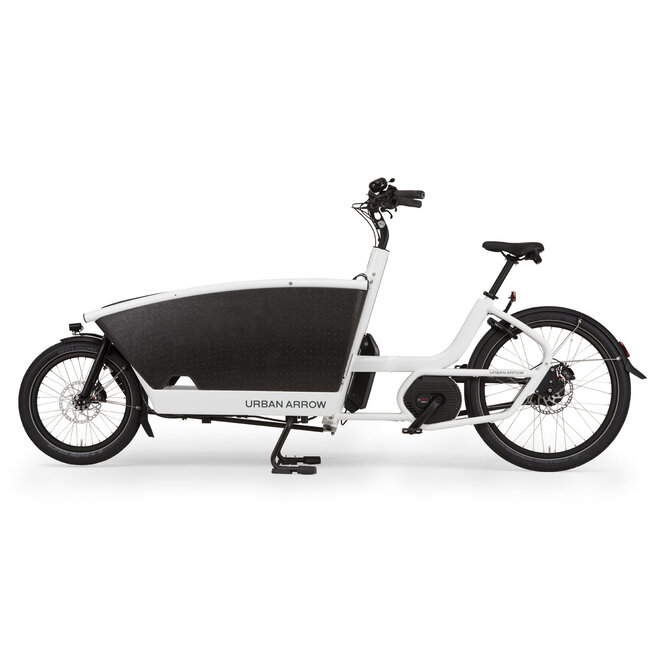

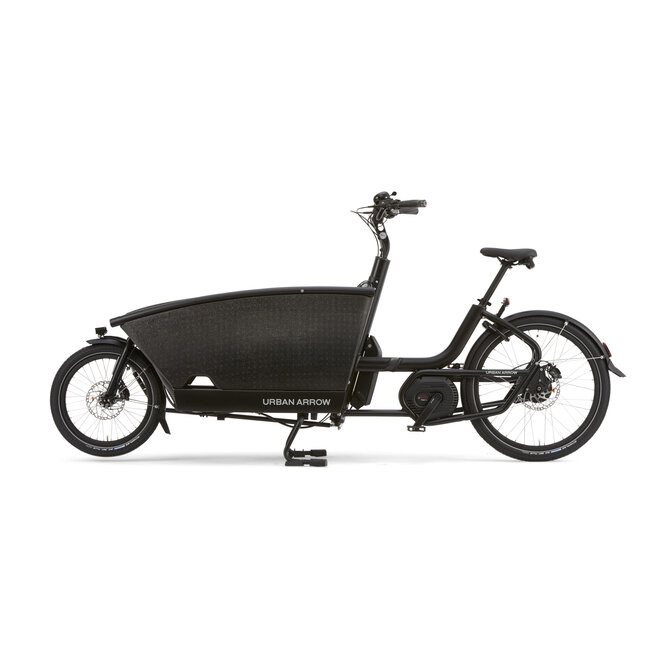

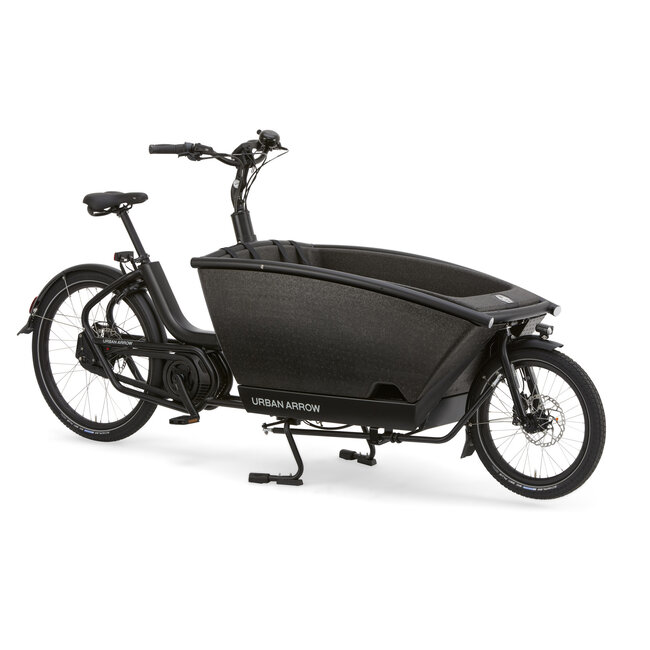

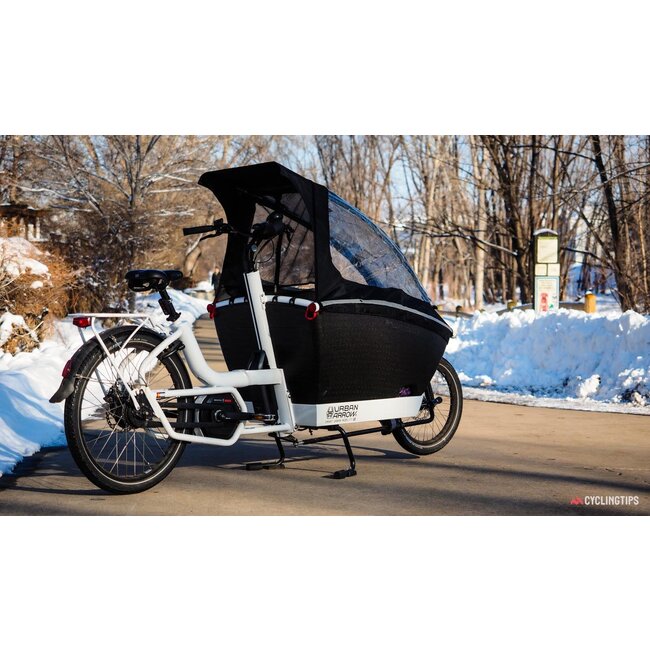

SMART URBAN MOBILITY: Urban Arrow FAMILY Bosch cargo line electric bike

Take the kids to school, fetch grocery, both at once, yep, the front load carg bike Urban Arrow FAMILY cdoes it all!

AN INVESTMENT IN FREEDOM



Meet the newest member of your tribe, a bakfiet that takes you and your children wherever you want to go. No more worries about your busy schedule, kids needing to be places, fetching groceries or shopping trips. Zip through the city effortlessly, or enjoy a trip to the woods or the beach. One ride and you’ll be hooked!



SUPREME AGILITY

Confidently zig-zag your way through traffic. The light frame, electric pedal assistance and stepless gear shifting guarantee a very pleasant riding experience. It is cycling the way you are used to, with agility and comfortable stability.



SAFETY FIRST

No compromise. The lowered children’ seating position makes for an overall lower center of gravity. This has a positive effect on the way in which the Family adheres to the road. A sturdy and adjustable three-point belt provides safety during the ride. And the expanded polypropylene (EPP) box protects your most precious cargo all around.

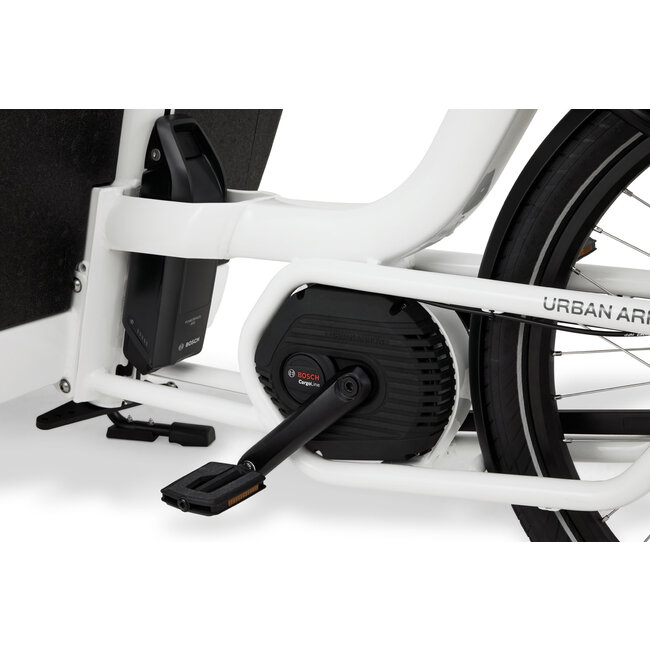

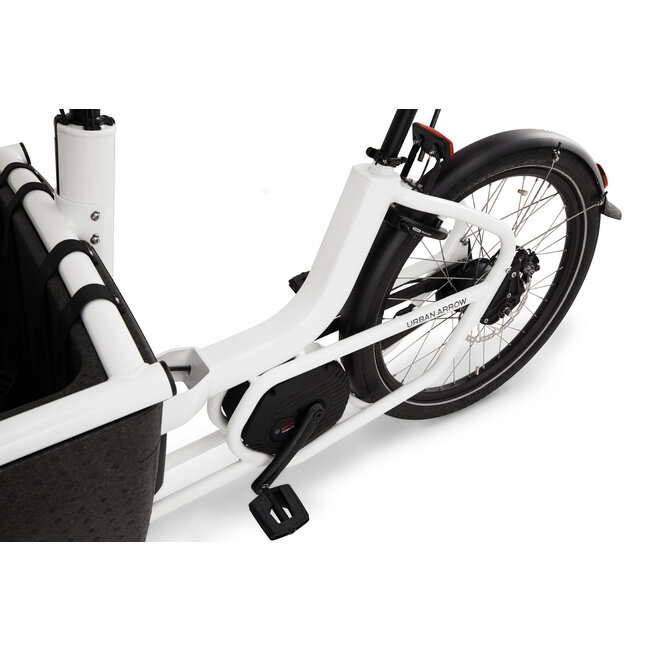

EPOWERED BY BOSCH

Choose the Performance or Cargo Line motor with a 500Wh battery for miles of smiles.



ENVIOLO STEPLESS GEAR SYSTEMS

Enviolo's TR and CA gearhubs provide effortless shifting and are a dream when combined with the Bosch motor.



 Family | Bosch Cargo Line | 500Wh | Zee Disc brakes*

Frame (rear)
Motor
UA4.2, aluminium
Bosch Cargo Line Gen 4, 250W
Battery Bosch 500Wh
Display
Rear hub, internal gear
Shifter
Drive line
Rear sprocket
Front sprocket
Chainguard
Rear brake
Front brake
Rear light
Front light
Front fork
Steering rod
Stem
Bosch Intuvia
Enviolo Cargo, 36H
Enviolo TR - Trekking
Chain, KMC X1 Silver 100L
Enviolo 17T flat
Miranda 38T Chainflow, 104BCD
Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo
Shimano Zee M640 (caliper); RT-66 203mm (disc); Metallic pads w coolfin H03C
Shimano Zee M640 (caliper); RT-66 180mm (disc); Metallic pads w coolfin H03C
Spanninga Plateo XE 6V-36V
Lezyne Power E80
UA rigid fork
UA Family steering rod & steering rod support 2020
TranzX JD-ST17-2 black 1-1/8 25,4 110mm
Handlebar Ergotec Moon cruiser 25,4 black
Grips Ergon GC10
Pedals C558
Seatpost Satori Trident 31,6 400mm black
Saddle Selle Royal Rio Plus
Cranks
Rear rim
Front rim
Front hub
Rear tire
Front tire
Valve
Rear fender
Front fender
Frame colour
Miranda Delta 0 , ISIS
Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G)
Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Shimano HB-M525A, 36H
Schwalbe Big Ben Plus 55-559
Schwalbe Big Ben Plus 55-406
Schrader
SKS 65mm 26" Black matte
SKS 65mm 20" Black matte
Black or White



Weight bike
Outer Dimensions
Max total weight
51Kg
L 260cm x W 70cm x H 110cm
275Kg Bike + Rider + Load

Specifications

Bike weight
51 kg
Frame material
Aluminium
Maximum range
125 km
Motor
mid-drive Bosch Cargo Line, 400% Assist
Drivetrain
Carbon belt
Torque
85Nm
Sensors
Speed, pedal force, rotation
Asisst levels
4
Walk assist
Yes
Gears
Enviolo Heavy Duty
Battery
Li-ion 500 Wh
Capacity
13,4 Ah
Second battery
no
Brakes
Hydraulic Magura CMe
Suspensions
Seat post and internal to headset
Front light
included, powered by battery
rear light
included, powered by battery
Front mudgard
Included
Rear mudgard
Included
Front rack
Front load bakfiet max 125 kg (275 lbs)
Rear rack
Not included
Max load (rider + cargo)
275 kg (606 lbs)
Bike bell
Included
Anti theft
Included, Abus keyed alike battery
