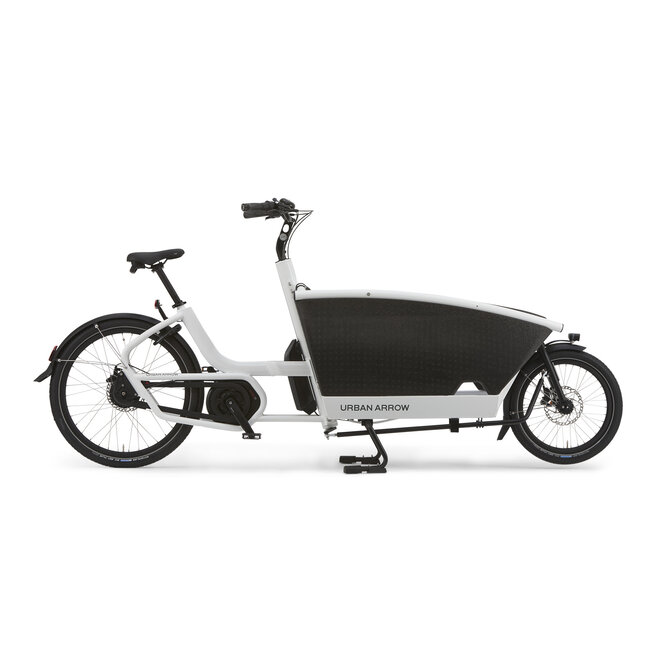

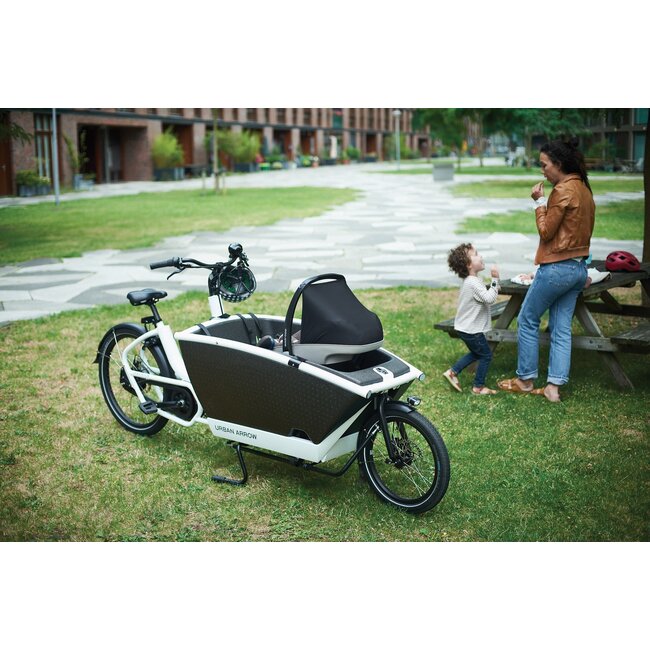

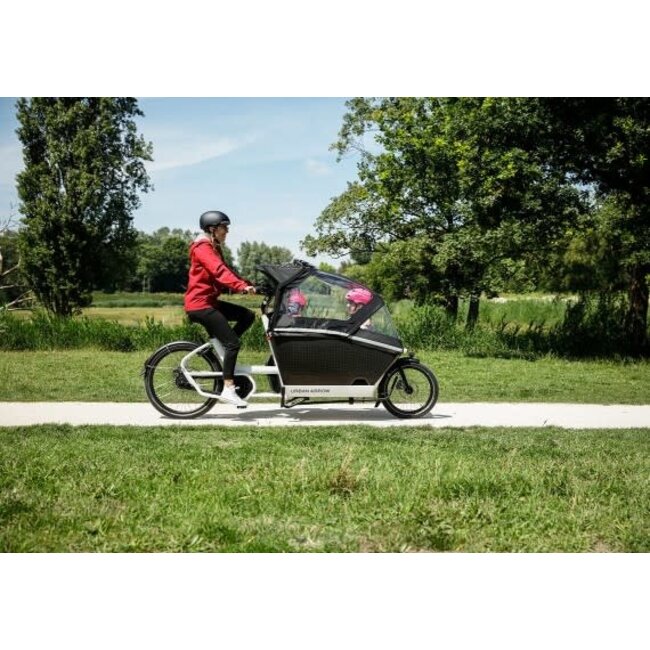

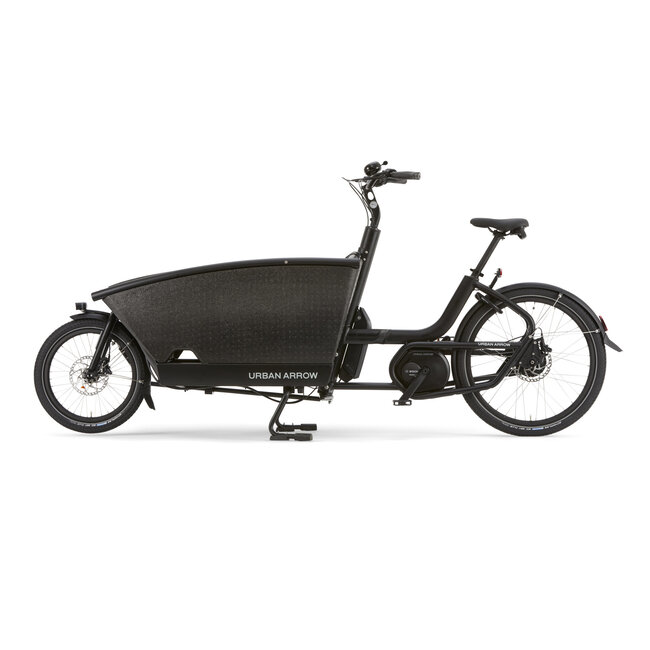

Urban Arrow FAMILY - Bosch performance line Cargo E-bike

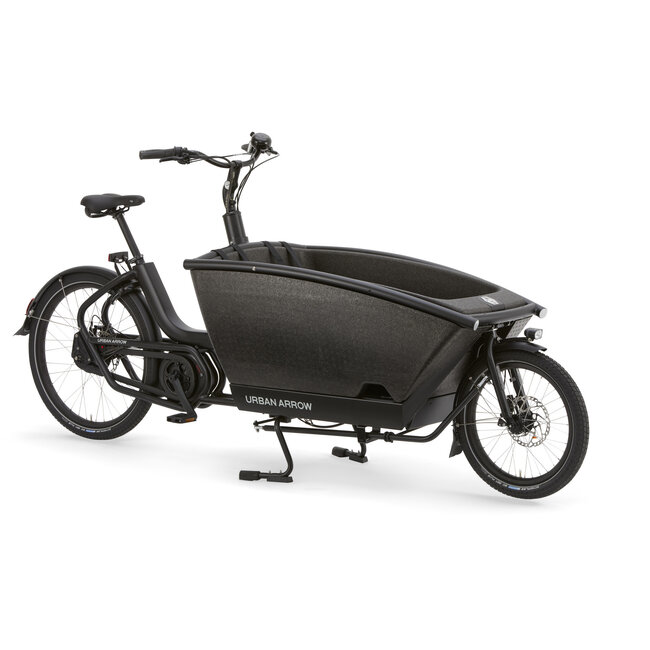

Urban Arrow FAMILY - Bosch performance line Cargo E-bike

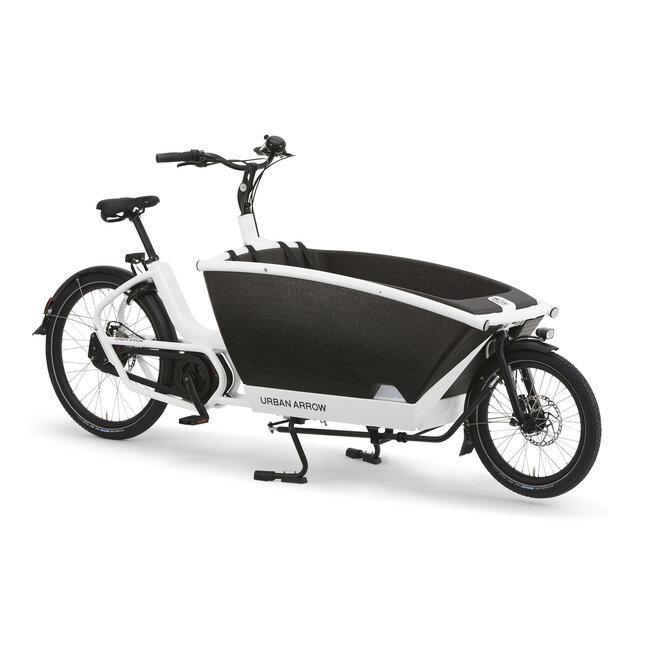

Urban Arrow FAMILY - Bosch performance line Cargo E-bike

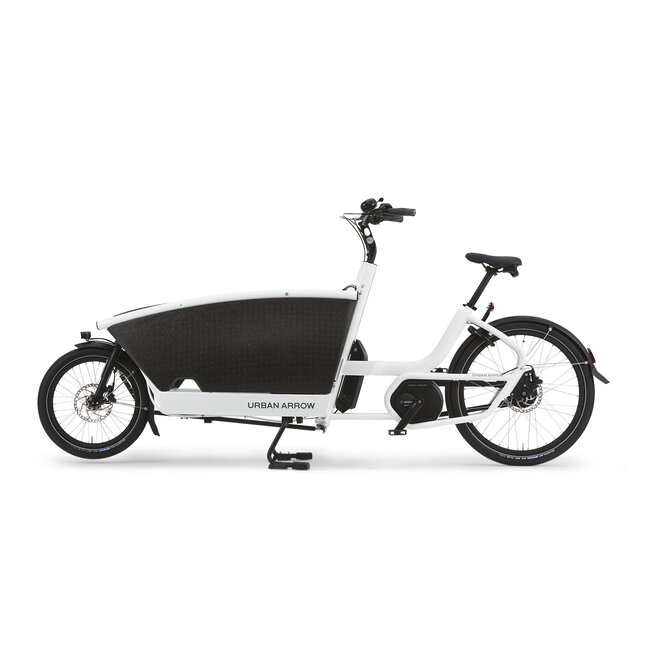

Urban Arrow FAMILY - Bosch performance line Cargo E-bike

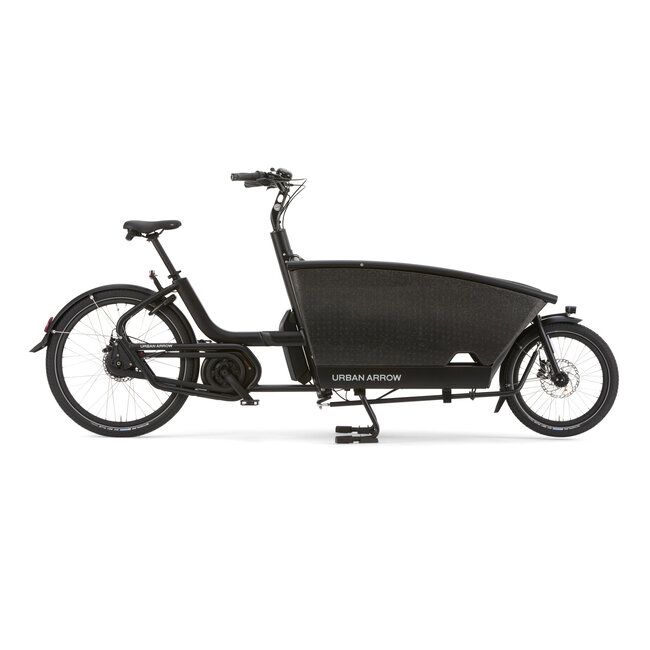

Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike

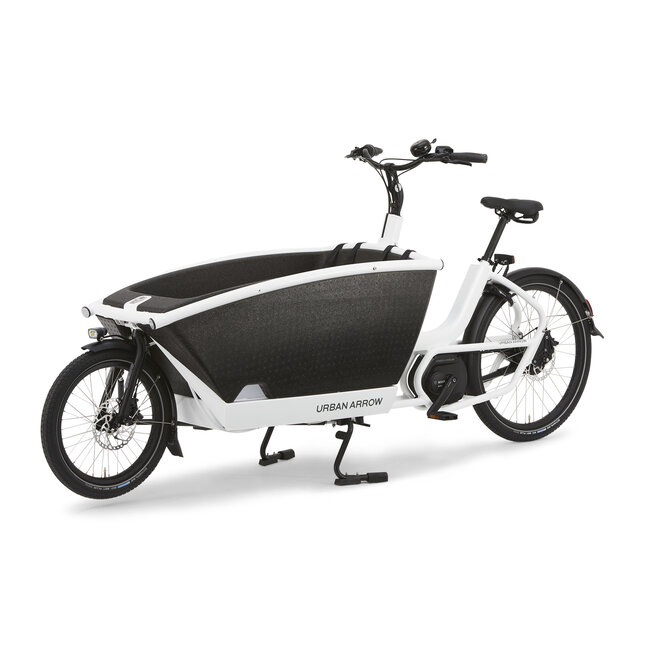

Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
Urban Arrow FAMILY - Bosch performance line Cargo E-bike
C$9,999.99 C$7,999.99 Excl.tax
On special order only
Article number:
UA204103
EAN Code:
8717231360767
SKU:
UA204103
  • Secure payment

    Lightspeed secure
  • Financing available

    Fairstone
  • FREE SHIPPING except oversized parcels

    See Shipping & Returns page for minimum purchase and oversized parcel fees
  • Fast shipping

    Orders processed within 48 hours

Information

SMART URBAN MOBILITY: CARGO E-BIKE URBAN ARROW FAMILY WITH BOSCH PERFOMANCE LINE MID DRIVE

Whether you want to save and your second family car for a bike, or as an urbanite you just can't be bother with heavy traffic or fighting to find a parking spot, or maybe you just love riding a bike and this is the best way to stay in shape, while saving money and the environment, while taking the kids to school, fetch grocery, have a look at the the Urban Arrow FAMILY cargo bike, because it is exactly what you need!

An investment in freedom

Meet the newest member of your tribe. One that takes you and your children wherever you want to go. No more worries about your busy schedule, kids needing to be places, fetching groceries or shopping trips. Zip through the city effortlessly, or enjoy a trip to the woods or the beach. One ride and you’ll be hooked!



Supreme agility

Confidently zig-zag your way through traffic. The light frame, electric pedal assistance and stepless gear shifting guarantee a very pleasant riding experience. It is cycling the way you are used to, with agility and comfortable stability.



Safety first

No compromise. The lowered children’ seating position makes for an overall lower center of gravity. This has a positive effect on the way in which the Family adheres to the road. A sturdy and adjustable three-point belt provides safety during the ride. And the expanded polypropylene (EPP) box protects your most precious cargo all around.

ePowered by Bosch

Choose the Performance or Cargo Line motor with a 500Wh battery for miles of smiles.



Enviolo Stepless Gear Systems

Enviolo's TR and CA gearhubs provide effortless shifting and are a dream when combined with the Bosch motor.

Family | Bosch Performance | 500Wh | Deore Disc brakes*
* As Urban Arrow works to continuously improve its products all specifications are subject to change.
Hence, no rights can be derived from this publication.
Last updated 01-01-2020
Part Specification

Frame (rear)
Motor
UA4.2, aluminium
Bosch Performance Line Gen 3, 250W
Battery Bosch 500Wh
Display
Rear hub, internal gear
Shifter
Drive line
Rear sprocket
Front sprocket
Chainguard
Rear brake
Front brake
Rear light
Front light
Front fork
Steering rod
Stem
Bosch Intuvia
Enviolo Cargo, 36H
Enviolo TR - Trekking
Chain, KMC X1 Silver 102L
Enviolo 17T flat
Lasco 38T, 4 hole, 104BCD
Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo
Shimano Deore M6000 (caliper); RT-66 203mm (disc); Elvedes metal pads 6894S
Shimano Deore M6000 (caliper); RT-66 180mm (disc); Elvedes metal pads 6894S
Spanninga Plateo XE 6V-36V
Spanninga Axendo 40
UA rigid fork
UA Family steering rod & steering rod support 2020
TranzX JD-ST17-2 black 1-1/8 25,4 110mm
Handlebar Ergotec Moon cruiser 25,4 black
Grips Ergon GC10
Pedals C558
Seatpost Satori Trident 31,6 400mm black
Saddle Selle Royal Rio Plus
Cranks
Rear rim
Front rim
Front hub
Rear tire
Front tire
Valve
Rear fender
Front fender
Frame colour
Lasco EB05 BNI 170mm
Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G)
Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Shimano HB-M525A, 36H
Schwalbe Big Ben Plus 55-559
Schwalbe Big Ben Plus 55-406
Schrader
SKS 65mm 26" Black matte
SKS 65mm 20" Black matte
Black or White



Weight bike
Outer Dimensions
Max total weight
51Kg
L 260cm x W 70cm x H 110cm
275Kg Bike + Rider + Load



Specifications

Bike weight
47.2 kg
Frame material
Aluminium
Maximum range
80 km
Motor
mid-drive BOSCH PERFORMANCE LINE 3.0
Drivetrain
Chain
Torque
65Nm
Sensors
Speed, pedal force, rotation
Asisst levels
4
Walk assist
Yes
Gears
Enviolo Heavy Duty
Battery
Li-ion 500 Wh
Capacity
11,6 Ah
Second battery
no
Brakes
Hydraulic Tektro Dorado
Suspensions
no
Front light
included, powered by battery
rear light
included, powered by battery
Front mudgard
Included
Rear mudgard
Included
Front rack
Front load bakfiet max 125 kg (275 lbs)
Rear rack
Not included
Max load (rider + cargo)
Bike bell
Included
Anti theft
Included, Abus keyed alike battery
